The PNS-5-01 Stationary Seed Treater (designed to fill big bags)

The seed treater is designed to treat seeds of cereals, legumes, soya and sunflower with water solutions, or suspensions of treating agents in accordance with the “List of pesticides and agrochemicals authorized for use in Ukraine” and to unload treated seeds into big bags.

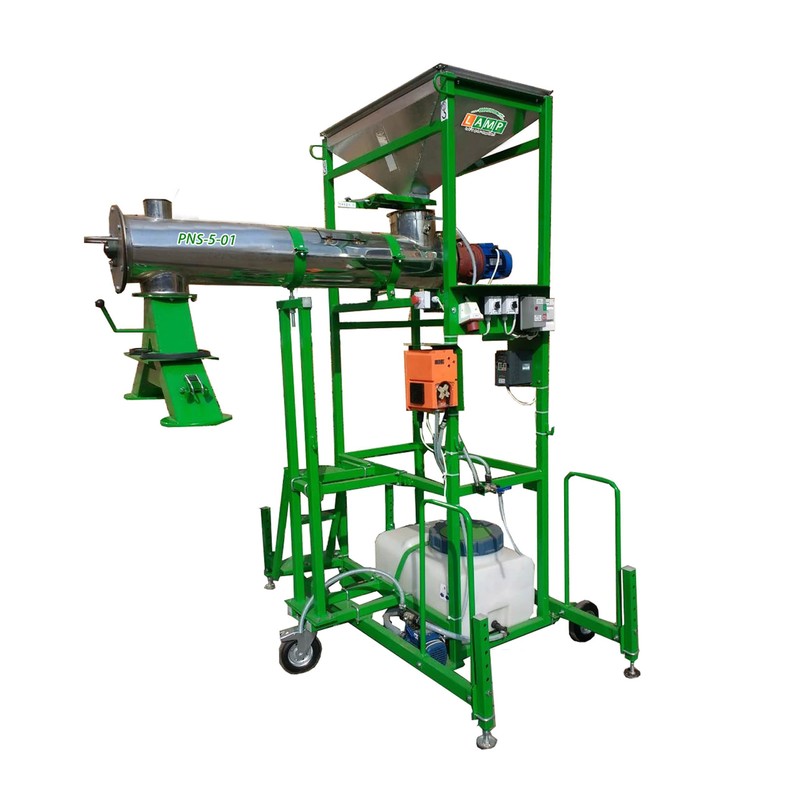

It is a mobile three-wheeled unit consisting of a tank with a hydraulic mixer and a pump unit, a hopper, a seed meter, a mixing-and-unloading auger with a distributor of seeds, dosing pump for working liquids and a control panel.

The seed treater is equipped with a slow-speed blade auger with rubber pads to treat seeds of cultures prone to damage.

The installed frequency converter makes it possible to change the speed of the auger.

The main assembly units of the seed treater are made of stainless steel.

The PNS-5-01 Stationary Seed Treater is designed to unload treated seeds into big bags.

Technical characteristics of the treater PNS-5-01:

Productive capacity, t/h 1-5

Height of loading seeds into the hopper, mm 2600

Height of  hanging bags to the discharge spout, mm 1500

Working liquid tank capacity,dm³ 100

Delivery of the solution, l/min 0,1 - 3,3

Power consumption, kW 1,5

Overall dimensions, mm 2800х2000х2600
