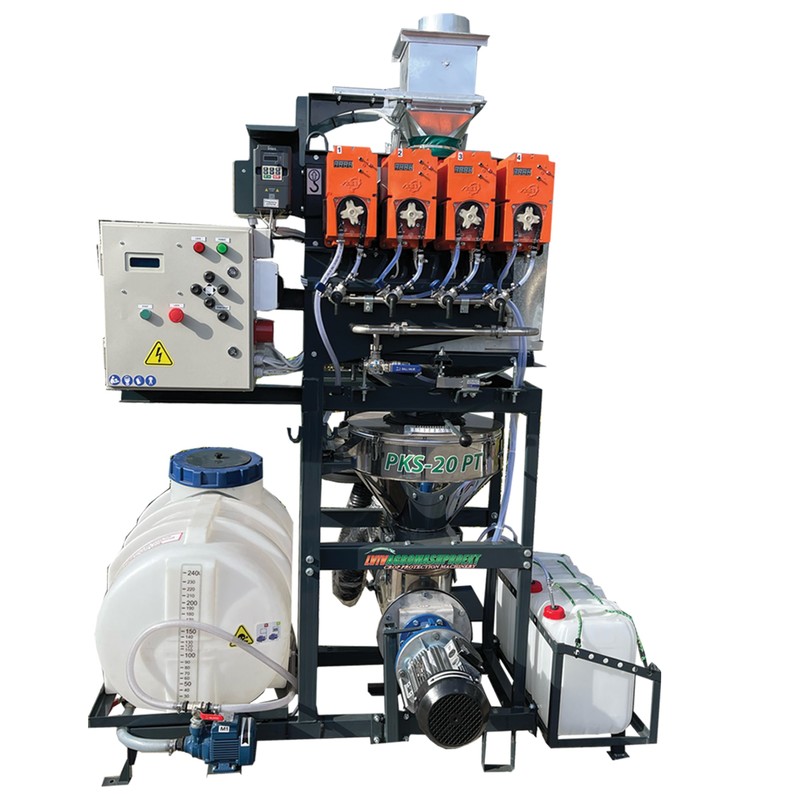

Chamber stationary seed treater PKS-20 PT

The PKS-20 PT treater is intended for treatment of seeds of grain, leguminous and oil crops with water solutions or suspensions of fungicides in seed preparation workshops or seed units of enterprises of the agro-industrial complex.

The main advantages of the device are: high accuracy of dosage of the given rate when working with both ordinary and multi-component working solutions, easy change of the feeding operation using push-button switches with fixation of the result on a special display, absence of self-pouring of solution residues when the treatment process is stopped, if necessary - the possibility of returning solution residues from the elements of the hydraulic line to the main tank. A frequency switch is installed in the treater, which allows you to change the rotations of the auger.

The function of the seed treater and of its mechanisms is controlled from the control panel  located on its housing.

The seed treater is installed in the production line.

Due to the peristaltic dosing pump NP-02, the seed treater can apply multicomponent and more viscous working solutions.

The seed treater is equipped with a slow-speed blade auger with rubber pads to treat seeds of cultures prone to damage.

The seed treater is easily cleaned due to the quickly dismountable treating chamber and blade auger.

Minimization of damaging seeds is achieved due to the possibility to change the speed  of the discharging auger.

The main units are made of stainless steel.

The machine, working in automatic mode, monitors the real-time weight of the seeds with the specified time period of the check and, if necessary, changes the supply of the treating solution.

Technical characteristics of the treater PKS-20-PT:

Productive capacity, t/hour, t/h 3-20,0

Tank capacity, no more than, dm³ (l) 250

Supply of the system of automatic, dm³/min 0,3 - 6,0

Consumed capacity, no more than, kW 4,5

Overall dimensions, mm 2150х1800х2450

Dry mass (constructional), kg 310
