Spring check valves suitable for use in irrigation, plumbing, heating, air conditioning and pneumatic systems.

They can be installed in any position: vertical, horizontal, oblique.

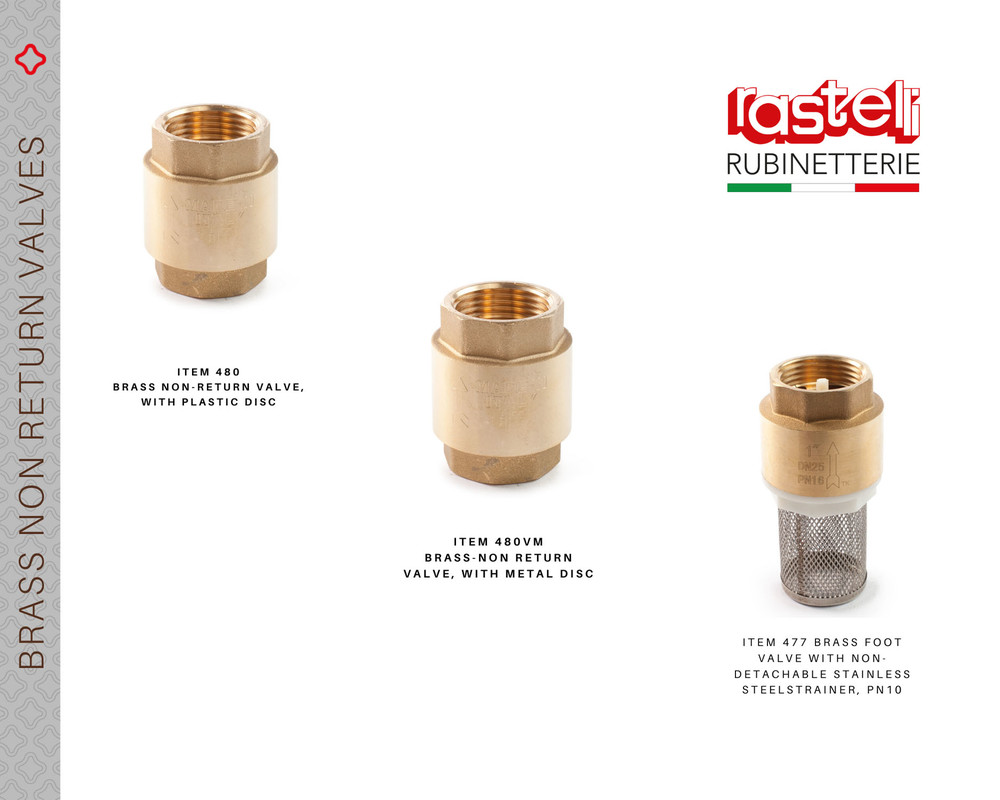

Available in versions with plastic (480) or metal (480VM) shutter, with non-removable stainless steel strainer (477).

Minimum and maximum operating temperature: -20 ° C, 100 ° C.

Threaded connections ISO228 (equivalent to DIN EN ISO 228 and BS EN ISO 228): 3/8 "- 4"

Non-return valves are one-way valves: they allow the flow of the fluid in only one direction, they must therefore be mounted so that the arrow on the body is in the same direction as the fluid.

Check the valve periodically, according to use and working conditions, to make sure it works properly. The leaks at the seal can be caused by the deposit of some foreign body (dirt, limestone) on the rubber seal.

To fix this problem, disassemble the valve and remove the foreign body using compressed air or tools.
